Technical Informations
Technical Features
| SKPD 1000 | |

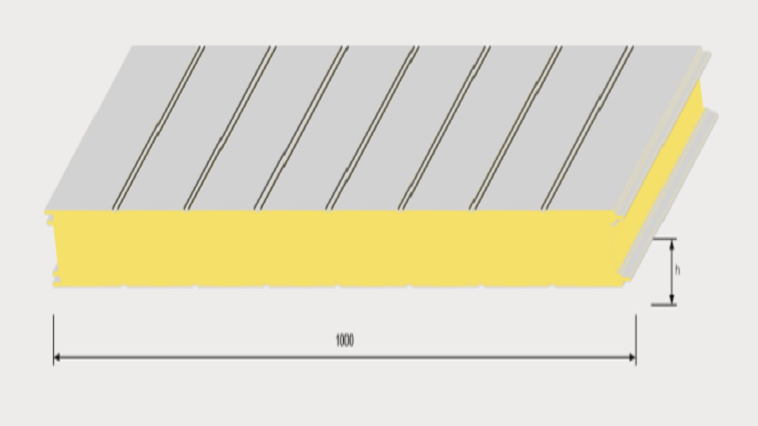

| Useful Width (mm) | 1000 |
| Covering (mm) |
Painted Galvanized Sheet (0,50 - 0,60 - 0,70 - 0,80) |
| Paint Type | Polyester PVdF, Food Grade |
| Color | RAL 9002a |
| Insulation | Polyurethane/PIR |
| Insulation Thickness (mm) - h | 60 - 75 - 80 - 100 - 120 |
| Declared Thermal Conductivity (W/MK)C | ≤ 0,023 |
a It is the standard color and other colors are manufactured on demand.

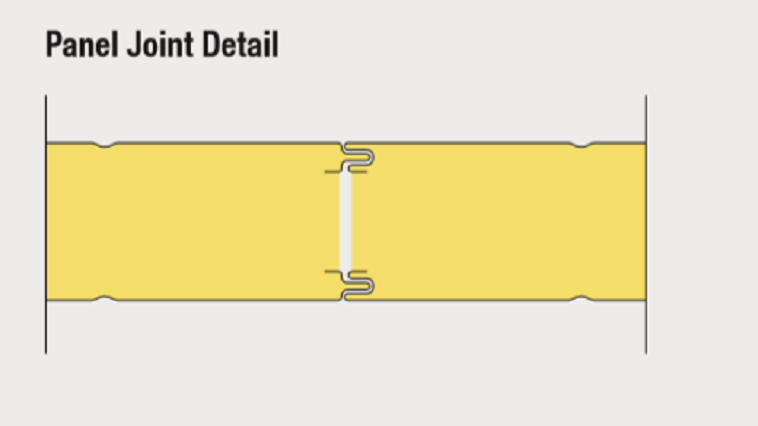

Panel Joint Detail
Panel Joint Detail

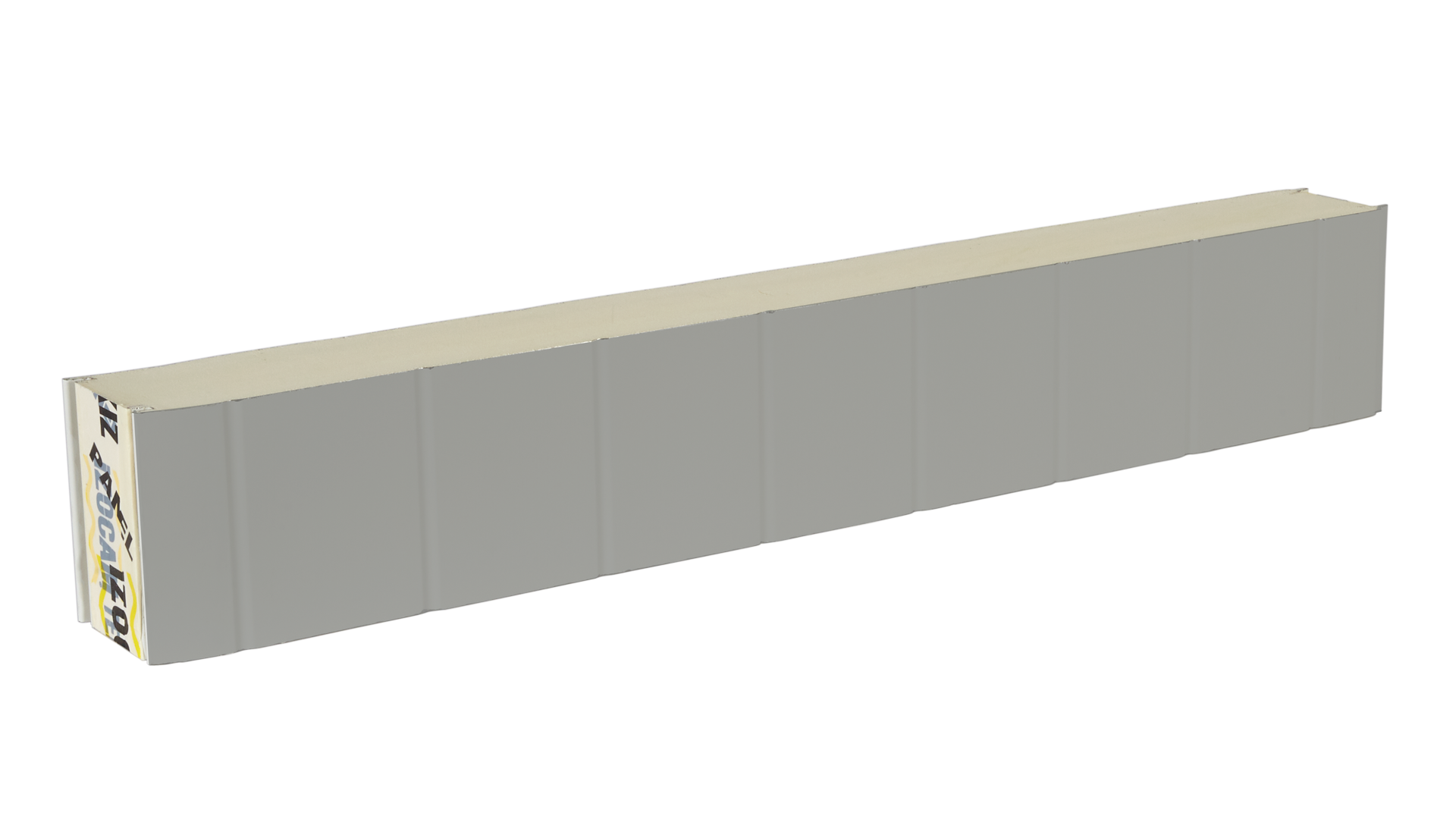

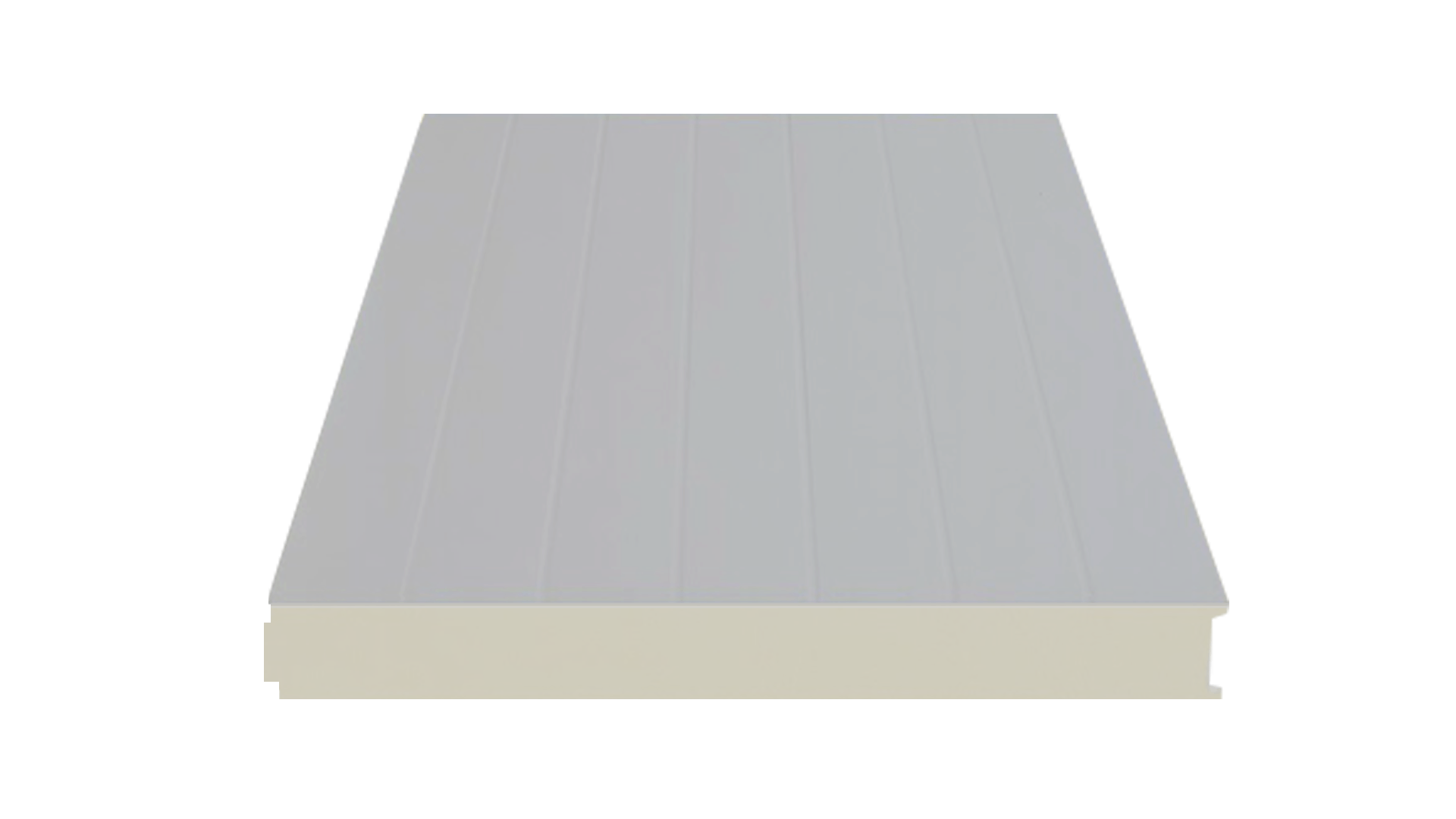

Izocam Tekiz Cold Storage Panels are polyurethane/PIR insulated sandwich panels used for cold storages, cold rooms that food industry needs and for the ceilings and walls of food processing establishments. Cold Storage Panels are strong in terms of their structure but lightweight. They solve the insulation problems of the ceiling and the wall at the same time. These panels are used in vegetable – fruit storages, integrated meat-chickenturkey processing plants, frozen food plants, abattoirs, dairy farms and supermarkets. Cold Storages Panels provide the desired hygenic conditions for the food industry since they don’t hold any bacteria and they can be cleaned conveniently. Nearly smooth surface texture of the panel also helps to keep hygiene. Cold Storage Panels are produced by coil coating technique from polyester, food grade polyester or galvanized sheet painted with PVdf. This painting technique ensures the metal to have a longer life. They don’t keep the smell like plastered walls do. They don’t hold any bacteria like glazed or ceramic tiles do within their joints. Surface cracks or crushing don’t occur.
Panel Joint Detail
When the outer sheet got warmed insulation may become insufficient. • In order to provide airtightness, antibacterial ( Food Safe ) Silicon should be used at the joint of two panels. • During installation, great care should be taken so that no thermal bridges occur. Thermal bridges cause frost formation and reduces the performance of the freezer. • When Cold Storages are put into use for the first time, they should be cooled down slowly. In freezing rooms pressure equalizing valves should be used. Otherwise sudden pressure changes occur and that can cause creases on the panel surface. 1000
Frequently Asked Questions
Where Can I Buy / Find Izocam Tekiz Products ?
Izocam Tekiz Products are available at İZOCAM-TEKİZ dealers. We do not offer direct sales.
Who Install Izocam Tekiz Products ?
Product installations are handled by İZOCAM-TEKİZ Installation Dealers.
Are Izocam Tekiz Products Kept In Stock ?
Products are produced to order. They are not kept in stock. İzofom Panels are kept in stock by retail sales dealers.
What Is The Warranty Term Of Izocam Tekiz Products ?
The warranty term is 2 years.
What Should Insulation Thickness Be Based Off Of ?
TS825 separates our country into 4 Regions. The Insulation Thickness should be calculated based on the required value of Uceiling and Uwall (Heat Permeability Coefficient).
What Should Sheet Thicknesses Be Based Off Of ?
Tekiz website and catalogues show the spring load-bearing capacity for each span. You may use this table to determine the appropriate sheet thickness.
Are All Colours Listed In Ral (Classic) Catalogue Available For Production ?
All colours in the RAL Catalogue are available for production provided that a minimum limit is exceeded. The standard sandwich panel/corrugated sheet colour is RAL9002.
Why Should Stone Wool Insulated Sandwich Panel Be The Prefferred Choice ?
Stone wool panels feature high fire resistance. They minimise insurance premiums. They safeguard your investment and prevent the fire from spreading, ensuring safety of your employees at high-risk facilities.
What Is Rei120?
Fire resistance duration for roof sandwich panels. It means that the sandwich panel can bear load, preserve its integrity and maintain its insulation properties for 120 minutes. The important matter to note here is the availability of these three properties (REI120) concurrently.
R : Load-bearing capacity
E : Integrity
I : Insulation
What Is The Flammability Class Of Sandwich Panels ?
The Regulation on Fire-Proofing Buildings categorise the flammability classes of building materials in line with the fire-reaction classification established with EN 13501-1 Euroclass.
The flammability classes of building materials are A1, A2, B, C, D, E and F.
Smoke and drip classes of the materials are not provided for the classes A1 and F.
Smoke and drip classes of the materials are always provided for the classes A2, B, C and D. For instance: A2-s1,d0 or C-s3,d2.
What Is The Broof (T2) Certification?
The term Broof roof plating, which meets all criteria for “External Fire Performance” without running any tests, is used to define the product that makes up the uppermost layer in the roof composition.
There is no need for Broof to be tested for panels where both surfaces are metal.
İzocam-Tekiz Kombi panel and PIR Fibro panel bear the Broof(t2) certification, which means they are resistant to external spread of fire. The (t2) annotation here means that tests were performed in windy conditions.
What Is Ei60?
Fire resistance duration for facade sandwich panels. It means that the sandwich panel preserve
its integrity and maintain its insulation properties for 60 minutes. The important matter to note here is
the availability of these two properties (EI60) concurrently.
E → Integrity
I → Insulation
