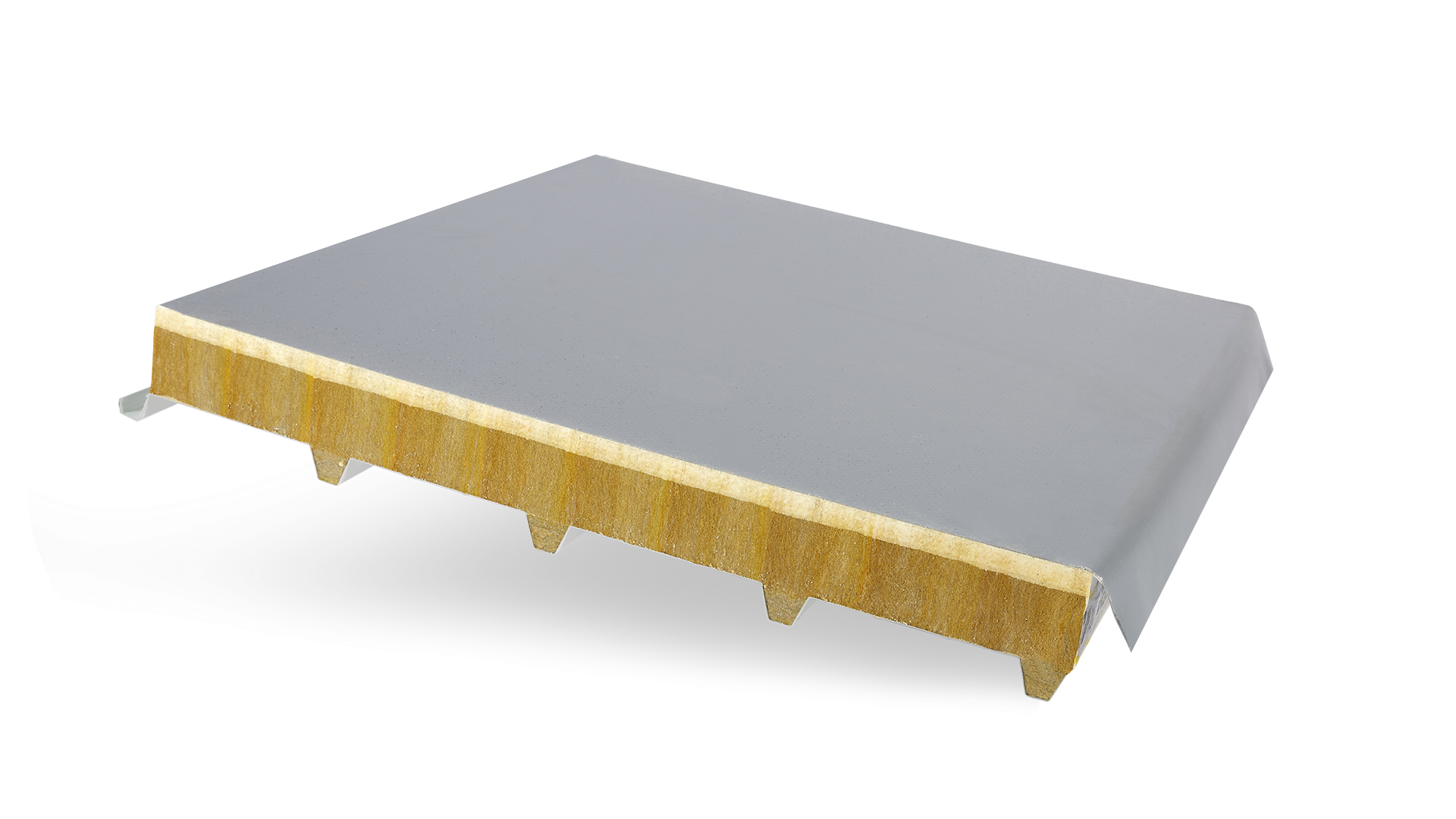

Combi Panel
It is produced to provide fire resistance, sound and thermal insulation for roofs with a slope smaller than 7 %. It is a stone wool and polyurethane/PIR insulated roof panel that its top surface is covered with PVC or TPO membrane.
BrochureTechnical Informations

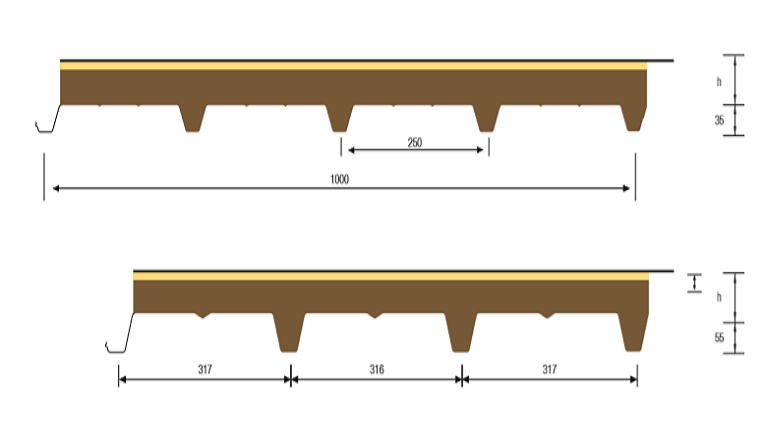

Technical Features
| Kombipanel | ||
| Useful Width (mm) | 1000 | 950 |
| Rib Height (mm) | 35 | 55 |
| Rb Count | 5 | 4 |
| Sheet Type and Thickness (mm) | Painted Galvanized Sheet (0,60 - 0,70 - 0,80) PVC/TPO Membrane (1,20 - 1,50) | |
| Paint Type | Polyester PVdF |
|
| Colour | RAL 9002a | |
| Insulation | Stone Wool + Polyurethane/PIR | |
| Insulation Thickness (mm) - h | 60-70 - 75 - 80 - 100-120 | |
| Declared Thermal Conductivity (10°C) (W/mK) | ≤ 0,040/0,023 | |
| Reaction to Fire | B-s1, d0 | |
| Reaction to External Fire | Broof (t2) | |
a ªIt is the standard colour. Other colours are produced on demand.
Packing Table
|
Packing quantities according to panel length (pcs) |
||
| Thickness | SPÇ 1000 5h | SPÇ 950 4H |
2.0 ≤ Boy (m) ≤ 13,50 |
||
| 60 | 10 | 8 |
| 70 | 8 | 8 |
| 75 | 8 | 8 |
| 80 | 8 | 6 |
| 100 | 6 | 6 |
| 120 | 6 | 4 |
Carrying Table
| SPC 1000 5H KOMBI PANEL | Multi Support Span (L/200 L=m) /td> | |||||||
| Panel Thickness (mm) | Panel weights (kg/m²) | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 |
| Distributed Load Bearing (P=kg/m2) | ||||||||
| 0,6 | 14,2 | 554 | 260 | 160 | 105 | 60 | 38 | 26 |
| 0,7 | 15,1 | 704 | 325 | 188 | 124 | 71 | 45 | 30 |
| 0,8 | 16,2 | 840 | 382 | 212 | 140 | 81 | 51 | 34 |
| SPC 950 4H KOMBI PANEL | Multi Support Span (L/200 L=m) | |||||||
| Panel Thickness(mm) | Panel weights (kg/m²) | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 |
| Distributed Load Bearing (P=kg/m2) | ||||||||
| 0,6 | 14,4 | 1014 | 482 | 312 | 211 | 109 | 79 | 49 |
| 0,7 | 15,3 | 1310 | 614 | 378 | 256 | 134 | 96 | 59 |
| 0,8 | 16,2 | 1583 | 734 | 435 | 295 | 155 | 111 | 67 |

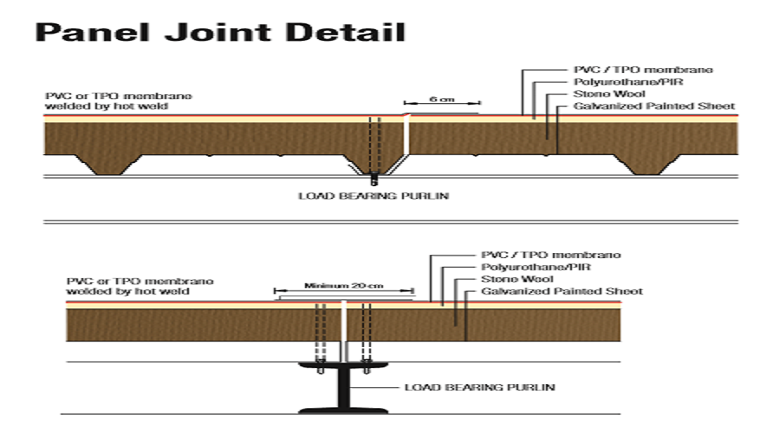

Panel Joint Detail
Panel Joint Detail
It is produced to provide fire resistance, sound and thermal insulation for roofs with a slope smaller than 7 %. It is a stone wool and polyurethane/PIR insulated roof panel that its top surface is covered with PVC or TPO membrane
Panel Joint Detail
It is produced to provide fire resistance, sound and thermal insulation for roofs with a slope smaller than 7 %. It is a stone wool and polyurethane/PIR insulated roof panel that its top surface is covered with PVC or TPO membrane
Frequently Asked Questions
Where Can I Buy / Find Izocam Tekiz Products ?
Izocam Tekiz Products are available at İZOCAM-TEKİZ dealers. We do not offer direct sales.
Who Install Izocam Tekiz Products ?
Product installations are handled by İZOCAM-TEKİZ Installation Dealers.
Are Izocam Tekiz Products Kept In Stock ?
Products are produced to order. They are not kept in stock. İzofom Panels are kept in stock by retail sales dealers.
What Is The Warranty Term Of Izocam Tekiz Products ?
The warranty term is 2 years.
What Should Insulation Thickness Be Based Off Of ?
TS825 separates our country into 4 Regions. The Insulation Thickness should be calculated based on the required value of Uceiling and Uwall (Heat Permeability Coefficient).
What Should Sheet Thicknesses Be Based Off Of ?
Tekiz website and catalogues show the spring load-bearing capacity for each span. You may use this table to determine the appropriate sheet thickness.
Are All Colours Listed In Ral (Classic) Catalogue Available For Production ?
All colours in the RAL Catalogue are available for production provided that a minimum limit is exceeded. The standard sandwich panel/corrugated sheet colour is RAL9002.
Why Should Stone Wool Insulated Sandwich Panel Be The Prefferred Choice ?
Stone wool panels feature high fire resistance. They minimise insurance premiums. They safeguard your investment and prevent the fire from spreading, ensuring safety of your employees at high-risk facilities.
What Is Rei120?
Fire resistance duration for roof sandwich panels. It means that the sandwich panel can bear load, preserve its integrity and maintain its insulation properties for 120 minutes. The important matter to note here is the availability of these three properties (REI120) concurrently.
R : Load-bearing capacity
E : Integrity
I : Insulation
What Is The Flammability Class Of Sandwich Panels ?
The Regulation on Fire-Proofing Buildings categorise the flammability classes of building materials in line with the fire-reaction classification established with EN 13501-1 Euroclass.
The flammability classes of building materials are A1, A2, B, C, D, E and F.
Smoke and drip classes of the materials are not provided for the classes A1 and F.
Smoke and drip classes of the materials are always provided for the classes A2, B, C and D. For instance: A2-s1,d0 or C-s3,d2.
What Is The Broof (T2) Certification?
The term Broof roof plating, which meets all criteria for “External Fire Performance” without running any tests, is used to define the product that makes up the uppermost layer in the roof composition.
There is no need for Broof to be tested for panels where both surfaces are metal.
İzocam-Tekiz Kombi panel and PIR Fibro panel bear the Broof(t2) certification, which means they are resistant to external spread of fire. The (t2) annotation here means that tests were performed in windy conditions.
What Is Ei60?
Fire resistance duration for facade sandwich panels. It means that the sandwich panel preserve
its integrity and maintain its insulation properties for 60 minutes. The important matter to note here is
the availability of these two properties (EI60) concurrently.
E → Integrity
I → Insulation
