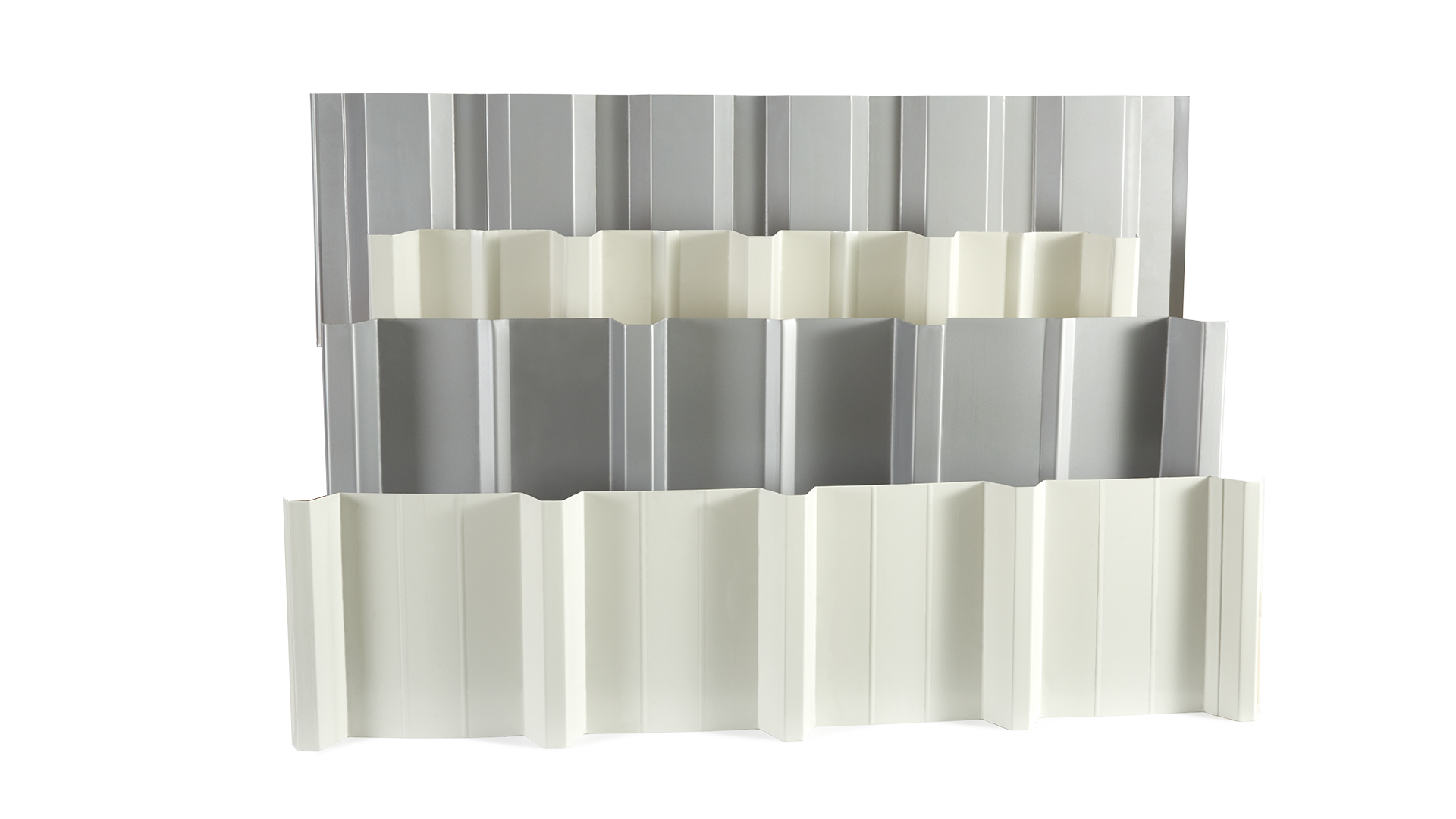

DK 90 Roof Sheet
Corrugated sheets for facades are produced for the buildings with no insulation needs and for the site-applied insulation system.
BrochureTechnical Informations
Technical Features
| Technical Specifications | DK 90 | ||
| Useful Width (mm) | 900 | ||
| Rib Height (mm) | 40 | ||
| Covering (mm) |
Galvanized Painted Sheet(0.50 -1.20) |
||
| Paint Type | Polyester PVdF |
||
| Color | RAL 9002a | ||
Carrying Table
| DK 90 – Roof | Multi Support Span (L/200 L=m) | |||||||
| Sheet Thickness (mm) | Corrugated Weight (kg/m2) | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 |
| Distributed Load Bearing (P=kg/m2) | ||||||||
| 0,5 | 5,32 | 737 | 328 | 184 | 118 | 70 | 44 | 30 |
| 0,6 | 6,38 | 946 | 420 | 236 | 151 | 92 | 58 | 39 |
| 0,7 | 7,45 | 1170 | 520 | 293 | 187 | 116 | 73 | 49 |
| 0,8 | 8,51 | 1408 | 626 | 352 | 225 | 141 | 89 | 59 |
| 0,9 | 9,58 | 1659 | 737 | 415 | 265 | 167 | 105 | 70 |
| 1,0 | 10,64 | 1919 | 853 | 480 | 307 | 192 | 121 | 81 |
| 1,2 | 12,77 | 2462 | 1094 | 615 | 394 | 234 | 147 | 99 |
Certificates and Documents
Panel Joint Detail
